MBRF1030CT, MBRF1020CT - SCHOTTKY BARRIER RECTIFIER

MBRF1030CT Description

MBRF1020CT THRU MBRF10100CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Ampere .

MBRF1030CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection
* For use in low v

MBRF1030CT Applications

* MECHANICAL DATA
* Case: JEDEC ITO-220AB molded plastic body
* Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
* High temperature soldering guaranteed: 250oC/10 seconds, 0.25" (6.35mm) from case
* Polarity: As marked
* Mounting Position: Any
* Mounting Torque:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF1030CT, MBRF1020CT. Please refer to the document for exact specifications by model.

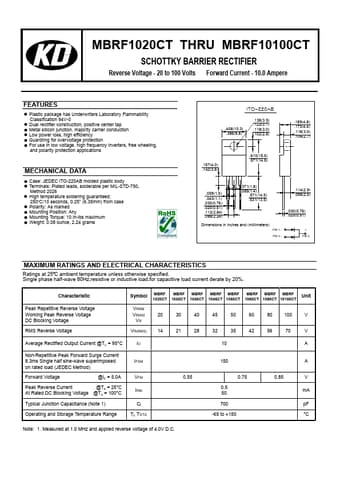

datasheet Preview Page 2

Datasheet Details

Part number
MBRF1030CT, MBRF1020CT
Manufacturer
KD
File Size
779.54 KB
Datasheet
MBRF1020CT-KD.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBRF1030CT, MBRF1020CT.
Please refer to the document for exact specifications by model.
