MBRF10100CT-M3, MBRF1090CT-M3 - Dual High Voltage Trench MOS Barrier Schottky Rectifier

MBRF10100CT-M3 Description

www.vishay.com MBRF1090CT-M3, MBRF10100CT-M3 Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier TMBS® ITO-220AB .

MBRF10100CT-M3 Features

* Trench MOS Schottky technology
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definiti

MBRF10100CT-M3 Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters or polarity protection application. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. Package 2 x 5.0 A 90 V, 100 V 120 A 0.75 V 150 °C ITO-220AB Circuit configuration Common cathode M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF10100CT-M3, MBRF1090CT-M3. Please refer to the document for exact specifications by model.

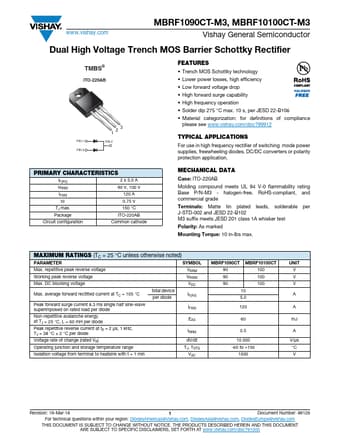

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF10100CT-M3, MBRF1090CT-M3
Manufacturer
Vishay ↗
File Size
127.44 KB
Datasheet
MBRF1090CT-M3-Vishay.pdf
Description
Dual High Voltage Trench MOS Barrier Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: MBRF10100CT-M3, MBRF1090CT-M3.
Please refer to the document for exact specifications by model.
