MBRF1090CT-M3, Dual High Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com MBRF1090CT-M3, MBRF10100CT-M3 Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier TMBS® ITO-220AB .

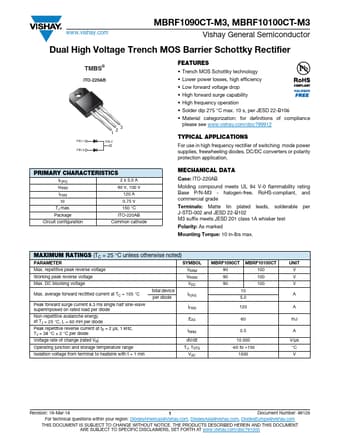

datasheet Preview Page 1 from Datasheet4u.com

MBRF1090CT-M3-Vishay.pdf

MBRF1090CT-M3 Datasheet Preview — Preview of MBRF1090CT-M3 PDF

Datasheet Details

Part number:

MBRF1090CT-M3

Manufacturer:

Vishay ↗

File Size:

127.44 KB

Description:

Dual High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definiti

Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters or polarity protection application. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. Package 2 x 5.0 A 90 V, 100 V 120 A 0.75 V 150 °C ITO-220AB Circuit configuration Common cathode M
