MBRF1090CT - Dual High Voltage Trench MOS Barrier Schottky Rectifier

MBRF1090CT Description

www.vishay.com MBRF1090CT, MBRF10100CT Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier TMBS® ITO-220AB PIN 1 .

MBRF1090CT Features

* Trench MOS Schottky technology
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definiti

MBRF1090CT Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters or polarity protection application. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. Package 2 x 5.0 A 90 V, 100 V 120 A 0.75 V 150 °C ITO-220AB Diode variations Common cathode MECHAN

📥 Download Datasheet

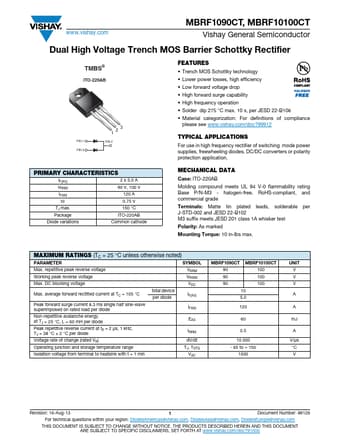

Preview of MBRF1090CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF1090CT
Manufacturer
Vishay ↗
File Size
85.22 KB
Datasheet
MBRF1090CT-Vishay.pdf
Description
Dual High Voltage Trench MOS Barrier Schottky Rectifier
