RS2JA, RS2AA SURFACE MOUNT FAST RECOVERY RECTIFIER

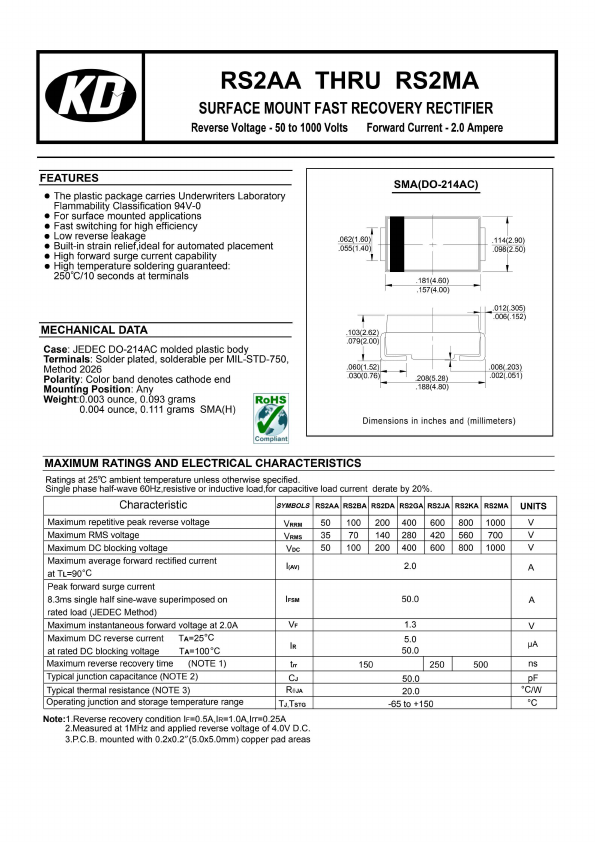

📥 Download Datasheet Datasheet Preview Page 1

Description

RS2AA THRU RS2MA SURFACE MOUNT FAST RECOVERY RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2JA, RS2AA. Please refer to the document for exact specifications by model.

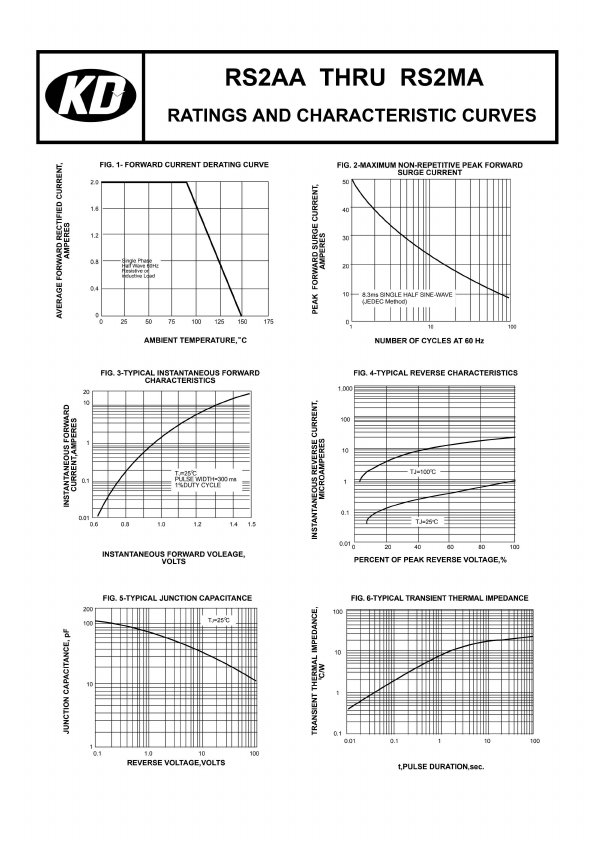

datasheet Preview Page 2

Datasheet Specifications

Part number
RS2JA, RS2AA
Manufacturer
KD
File Size
509.34 KB
Datasheet
RS2AA-KD.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS2JA, RS2AA.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

Applications

* Fast switching for high efficiency
* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 250 C/10 seconds at terminals MECHANICAL DATA Case: JEDEC DO-214AC molded plastic bod
