S10D, S10A - SURFACE MOUNT GENERAL RECTIFIER

S10D Description

S10A THRU S10M SURFACE MOUNT GENERAL RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 10.0 Ampere .

S10D Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

S10D Applications

* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 250 C/10 seconds at terminals MECHANICAL DATA Case: JEDEC SMC/DO-214AB molded plastic body Terminals: Solder plated , solderab

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S10D, S10A. Please refer to the document for exact specifications by model.

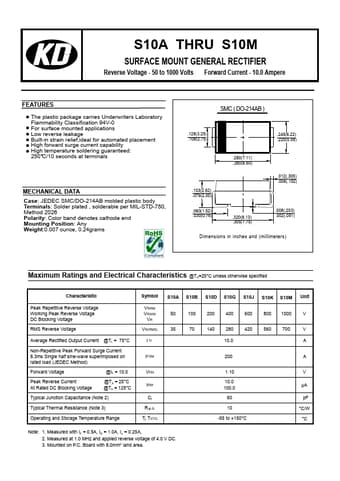

datasheet Preview Page 2

Datasheet Details

Part number
S10D, S10A
Manufacturer
KD
File Size
589.43 KB
Datasheet
S10A-KD.pdf
Description
SURFACE MOUNT GENERAL RECTIFIER
Note
This datasheet PDF includes multiple part numbers: S10D, S10A.
Please refer to the document for exact specifications by model.
