SF26, SF21, SUPER FAST RECOVERY SILICON RECTIFIER

SF21 THRU SF28 SUPER FAST RECOVERY SILICON RECTIFIER Reverse Voltage - 50 to 600 Volts Forward Current - 2.0 Ampere .

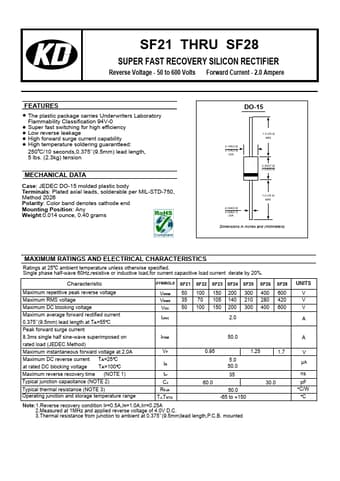

datasheet Preview Page 1 from Datasheet4u.com

SF21-KD.pdf

SF26 Datasheet Preview — This datasheet PDF includes multiple part numbers: SF26, SF21. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SF26, SF21

Manufacturer:

File Size:

606.62 KB

Description:

SUPER FAST RECOVERY SILICON RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SF26, SF21.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Super fast switching for high efficiency
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guarantteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5
