US1GF, US1AF, SURFACE MOUNT ULTRA FAST RECTIFIER

US1AF THRU US1MF SURFACE MOUNT ULTRA FAST RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere .

US1AF-KD.pdf

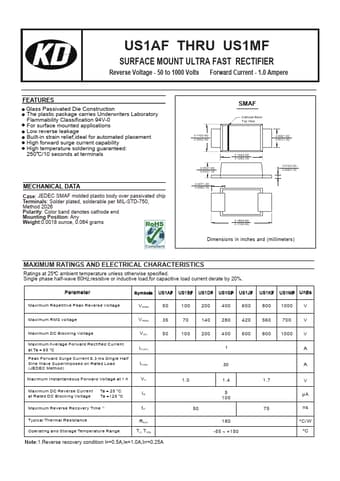

US1GF Datasheet Preview — This datasheet PDF includes multiple part numbers: US1GF, US1AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

US1GF, US1AF

Manufacturer:

File Size:

881.83 KB

Description:

SURFACE MOUNT ULTRA FAST RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: US1GF, US1AF.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction
* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

Applications

* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 250 C/10 seconds at terminals MECHANICAL DATA Case: JEDEC SMAF molded plastic body over passivated chip Terminals: Solder plat
