PG03DBTFC - TVS Diode

Datasheet Summary

Features

  • Transient protection for data lines to IEC 61000-4-2(ESD) 15kV(Air), 8kV(Contact) IEC 61000-4-4(EFT) 40A(tp=5/50ns) IEC 61000-4-5(Lightning) 5A(tp=8/20 s) Bidirectional Type Pin Configuration Structure. Small package for use in portable electronics. Suitable replacement for Multi-Layer Varistors in ESD protection.

📥 Download Datasheet

Datasheet preview – PG03DBTFC

Datasheet Details

Part number PG03DBTFC
Manufacturer KEC semiconductor
File Size 48.90 KB
Description TVS Diode
Datasheet download datasheet PG03DBTFC Datasheet
Additional preview pages of the PG03DBTFC datasheet.

📁 Similar Datasheet

Other Datasheets by KEC semiconductor

Full PDF Text Transcription

Click to expand full text

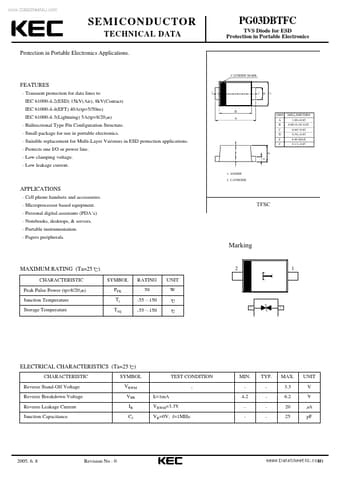

www.DataSheet4U.com SEMICONDUCTOR TECHNICAL DATA Protection in Portable Electronics Applications. PG03DBTFC TVS Diode for ESD Protection in Portable Electronics CATHODE MARK FEATURES Transient protection for data lines to IEC 61000-4-2(ESD) 15kV(Air), 8kV(Contact) IEC 61000-4-4(EFT) 40A(tp=5/50ns) IEC 61000-4-5(Lightning) 5A(tp=8/20 s) Bidirectional Type Pin Configuration Structure. Small package for use in portable electronics. Suitable replacement for Multi-Layer Varistors in ESD protection applications. Protects one I/O or power line. E B A 2 1 D C DIM A B C D E F MILLIMETERS _ 0.05 1.00 + 0.80+0.10/-0.05 _ 0.05 0.60 + _ 0.05 0.30 + 0.40 MAX _ 0.05 0.13 + Low clamping voltage. Low leakage current. 1. ANODE 2. CATHODE F APPLICATIONS Cell phone handsets and accessories.
