KTC3502 - EPITAXIAL PLANAR NPN TRANSISTOR

KTC3502 Description

SEMICONDUCTOR TECHNICAL DATA HIGH-DEFINITION CRT DISPLAY VIDEO OUTPUT APPLICATION..

KTC3502 Features

* High Voltage : VCEO=200V. High Transition Frequency : fT=150MHz(Typ. ). Low Collector Output Capacitance : Cob=1.7pF(Typ. ). KTC3502 EPITAXIAL PLANAR NPN TRANSISTOR MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Cur

📥 Download Datasheet

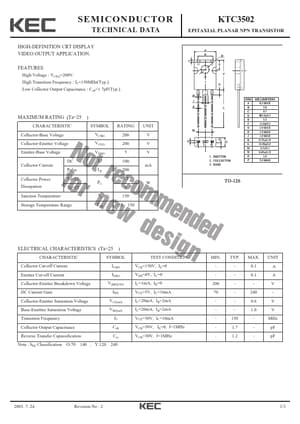

Preview of KTC3502 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTC3502
Manufacturer
KEC
File Size
846.22 KB
Datasheet
KTC3502-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
