KTC9012 - EPITAXIAL PLANAR PNP TRANSISTOR

KTC9012 Description

SEMICONDUCTOR TECHNICAL DATA GENERAL PURPOSE APPLICATION.SWITCHING APPLICATION..

KTC9012 Features

* Excellent hFE Linearity. Complementary to KTC9013. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current Collector Power Dissipation Junction Temperature VCBO VCEO VEBO IC IE PC Tj Storage Temperatu

📥 Download Datasheet

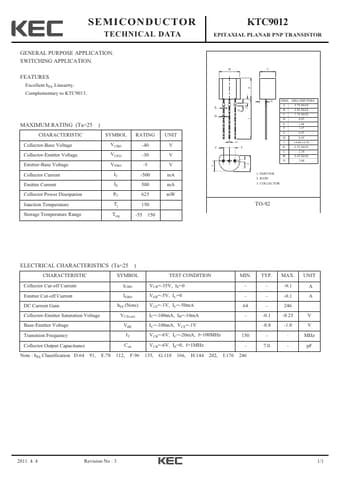

Preview of KTC9012 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KTC9012
Manufacturer
KEC
File Size
359.67 KB
Datasheet
KTC9012-KEC.pdf
Description
EPITAXIAL PLANAR PNP TRANSISTOR
