KTD1630G Datasheet, Transistor, KEC

KTD1630G Features

  • Transistor
  • Complementary to KTB2630G
  • High power Amplifier for 100W Audio
  • High DC Current Gain hFE = 6,500~30,000 (VCE= 4V, IC = 7A)
  • Wide SOA H PACKAGE DIM

PDF File Details

Part number:

KTD1630G

Manufacturer:

KEC

File Size:

405.54kb

Download:

📄 Datasheet

Description:

Triple diffused npn transistor.

Datasheet Preview: KTD1630G 📥 Download PDF (405.54kb)

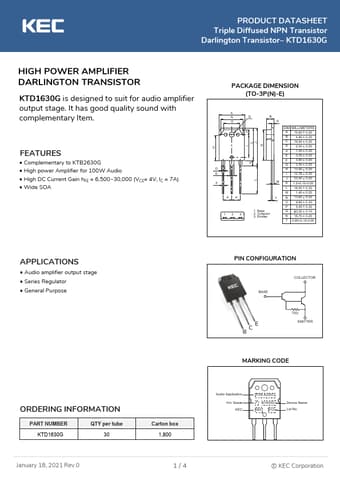

Page 2 of KTD1630G Page 3 of KTD1630G

KTD1630G Application

  • Applications
  • Audio amplifier output stage
  • Series Regulator
  • General Purpose PIN CONFIGURATION BASE COLLECTOR BCE 7
