MMBTA517 Datasheet - KEC

MMBTA517 EPITAXIAL PLANAR NPN TRANSISTOR

SEMICONDUCTOR TECHNICAL DATA GENERAL PURPOSE HIGH DARLINGTON TRANSISTOR. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation VCBO VCEO VEBO IC PC 40 30 10 400 350 Junction Temperature Tj 150 Storage Temperature Tstg -55 150 : Package Mounted On 99.5% Alumina 10 8 0.6mm. UNIT V V V mA mW MMBTA517 EPITAXIAL PLANAR NPN TRANSISTOR E L BL DIM MILLIMETERS A 2..

MMBTA517 Datasheet (472.91 KB)

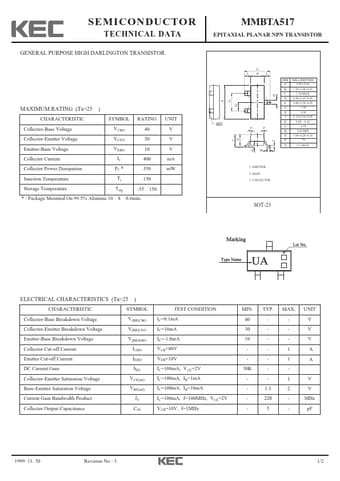

MMBTA517 Datasheet Preview — Preview of MMBTA517 PDF

Datasheet Details

Part number:

MMBTA517

Manufacturer:

KEC

File Size:

472.91 KB

Description:

Epitaxial planar npn transistor.
