PG03DXTEV - TVS Diode Array

Datasheet Summary

Features

  • ESD Protection: IEC 61000-4-2 Level 4. MILSTD883C-Method 3015-6:Class 3 Four separate unidirectional configurations for protection Low leakage current.

📥 Download Datasheet

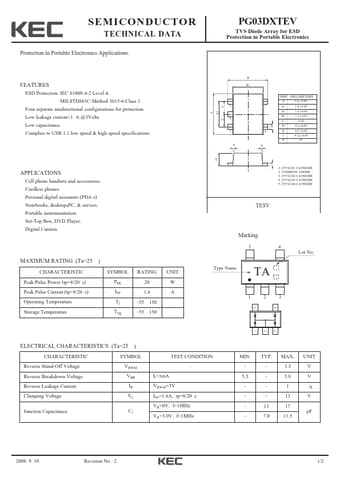

Datasheet preview – PG03DXTEV

Datasheet Details

Part number PG03DXTEV
Manufacturer KEC
File Size 345.04 KB
Description TVS Diode Array
Datasheet download datasheet PG03DXTEV Datasheet
Additional preview pages of the PG03DXTEV datasheet.

📁 Similar Datasheet

  • PG03DBTFC - TVS Diode (KEC semiconductor)
  • PG03DBVSC - TVS Diode (KEC semiconductor)
  • PG001M - Serial Signal Generator IC for SLA7042M and SLA7044M (Sanken electric)
  • PG001M - PARALLEL-TO-SERIAL DATA CONVERTER (Allegro MicroSystems)
  • PG05DBTFC - TVS Diode (KEC semiconductor)
  • PG05DBVSC - TVS Diode (KEC semiconductor)
  • PG05UBUL2 - TVS DIODE (Leiditech)
Other Datasheets by KEC

Full PDF Text Transcription

Click to expand full text
SEMICONDUCTOR TECHNICAL DATA Protection in Portable Electronics Applications. PG03DXTEV TVS Diode Array for ESD Protection in Portable Electronics FEATURES ESD Protection: IEC 61000-4-2 Level 4. MILSTD883C-Method 3015-6:Class 3 Four separate unidirectional configurations for protection Low leakage current<1 A @3Volts Low capacitance Complies to USB 1.1 low speed & high speed specifications APPLICATIONS Cell phone handsets and accessories. Cordless phones. Personal digital assistants (PDA s) Notebooks, desktopsPC, & servers. Portable instrumentation. Set-Top Box, DVD Player. Digital Camera. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC Peak Pulse Power (tp=8/20 s) Peak Pulse Current (tp=8/20 s) Operating Temperature Storage Temperature SYMBOL PPK IPP Tj Tstg RATING 20 1.
