PG05BAUSM - TVS Diode

Features

  • Transient protection for data lines to IEC61000-4-2(ESD) 15kV(Air), 8kV(Contact) Small package for use in portable electronics. Suitable replacement for Multi-Layer Varistors in ESD protection.

📥 Download Datasheet

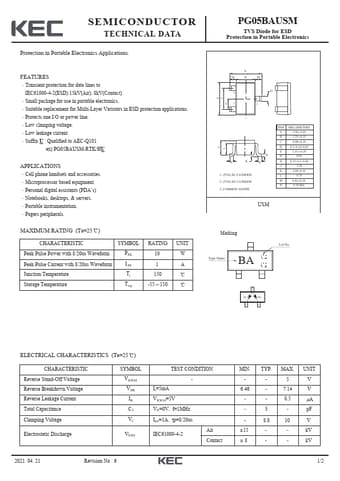

Datasheet preview – PG05BAUSM

Datasheet Details

Part number PG05BAUSM
Manufacturer KEC
File Size 286.75 KB
Description TVS Diode
Datasheet download datasheet PG05BAUSM Datasheet
Additional preview pages of the PG05BAUSM datasheet.

📁 Similar Datasheet

  • PG05DBTFC - TVS Diode (KEC semiconductor)
  • PG05DBVSC - TVS Diode (KEC semiconductor)
  • PG05UBUL2 - TVS DIODE (Leiditech)
  • PG001M - Serial Signal Generator IC for SLA7042M and SLA7044M (Sanken electric)
  • PG001M - PARALLEL-TO-SERIAL DATA CONVERTER (Allegro MicroSystems)
  • PG03DBTFC - TVS Diode (KEC semiconductor)
  • PG03DBVSC - TVS Diode (KEC semiconductor)
Other Datasheets by KEC

Full PDF Text Transcription

Click to expand full text
SEMICONDUCTOR TECHNICAL DATA Protection in Portable Electronics Applications. PG05BAUSM TVS Diode for ESD Protection in Portable Electronics FEATURES Transient protection for data lines to IEC61000-4-2(ESD) 15kV(Air), 8kV(Contact) Small package for use in portable electronics. Suitable replacement for Multi-Layer Varistors in ESD protection applications. Protects one I/O or power line. Low clamping voltage. Low leakage current. Suffix U : Qualified to AEC-Q101. ex) PG05BAUSM-RTK/HU APPLICATIONS Cell phone handsets and accessories. Microprocessor based equipment. Personal digital assistants (PDA’s) Notebooks, desktops, & servers. Portable instrumentation. Pagers peripherals.
