T599X336M035ATE065 - Capacitor

Datasheet Summary

Description

SMD, Polymer, Molded, Automotive Construction: Standard Chip Polymer Body Type: Molded Chip Application: High Temp/Automotive (AEC-Q200) Typical Weight: 434.83mg Symbol L W H F S B X P R T A G E Dimensions (mm) Dimension 7.30 4.30 4.00 2.40 1.30 0.50 0.10 0.90 1.00 0.13 3.80 3.50 3.50 Tolerance

📥 Download Datasheet

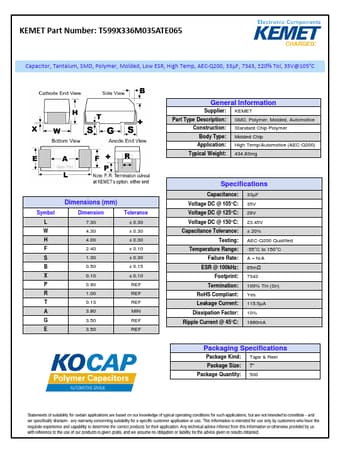

Datasheet preview – T599X336M035ATE065

Datasheet Details

Part number T599X336M035ATE065
Manufacturer KEMET
File Size 316.67 KB
Description Capacitor
Datasheet download datasheet T599X336M035ATE065 Datasheet
Additional preview pages of the T599X336M035ATE065 datasheet.

📁 Similar Datasheet

  • T590N - Phase Control Thyristor (Infineon)
  • T5919 - Bottom Port PDM Digital Output Multi-Mode Microphone (TDK)
Other Datasheets by KEMET
  • T599 - Organic Capacitor
  • T591 - Organic Capacitor
  • T597 - Organic Capacitor
  • T598 - Organic Capacitor

Full PDF Text Transcription

Click to expand full text
KEMET Part Number: T599X336M035ATE065 Capacitor, Tantalum, SMD, Polymer, Molded, Low ESR, High Temp, AEC-Q200, 33µF, 7343, ±20% Tol, 35V@105°C General Information Supplier: KEMET Part Type Description: SMD, Polymer, Molded, Automotive Construction: Standard Chip Polymer Body Type: Molded Chip Application: High Temp/Automotive (AEC-Q200) Typical Weight: 434.83mg Symbol L W H F S B X P R T A G E Dimensions (mm) Dimension 7.30 4.30 4.00 2.40 1.30 0.50 0.10 0.90 1.00 0.13 3.80 3.50 3.50 Tolerance ± 0.30 ± 0.30 ± 0.30 ± 0.10 ± 0.30 ± 0.15 ± 0.
