T5919

Bottom Port PDM Digital Output Multi-Mode Microphone

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Microchip Technology Inc 1PMT5919C-TR7 DIODE ZENER 5.6V 3W DO216AA DigiKey 0 0
$0

T5919 Datasheet (673.51 KB)

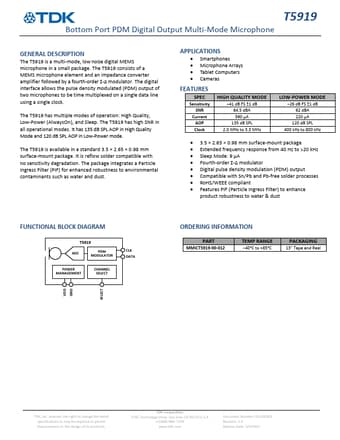

Preview of T5919 PDF Datasheet

Datasheet Details

Part number:

T5919

Manufacturer:

TDK

File Size:

673.51 KB

Description:

Bottom port pdm digital output multi-mode microphone.

T5919 Features

* SPEC Sensitivity SNR Current AOP Clock HIGH QUALITY MODE

* 41 dB FS ±1 dB 64.5 dBA 590 µA 135 dB SPL 2.0 MHz to 3.3 MHz LOW-POWER MODE

* 26 dB FS ±1 dB 62 dBA 220 µA 120 dB SPL 400 kHz to 800 kHz

* 3.5 × 2.65 × 0.98 mm surface-mount package

* Extended frequency respo

T5919 General Description

The T5919 is a multi-mode, low noise digital MEMS microphone in a small package. The T5919 consists of a MEMS microphone element and an impedance converter amplifier followed by a fourth-order Σ-Δ modulator. The digital interface allows the pulse density modulated (PDM) output of two microphones to .
