K301 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Datasheet Summary

Features

Mini-flat Package.
Collector-Emitter Voltage : Min.30V.
Current Transfer Ratio : Type 600% (at IF=1mA, VCE=2V).
Electrical Isolation Voltage : AC3750Vrms.

KODENSHI KOREA CORP

📥 Download Datasheet

Datasheet Details

Part number	K301
Manufacturer	KODENSHI KOREA CORP
File Size	203.85 KB
Description	Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
Datasheet	K301 Datasheet
Additional preview pages of the K301 datasheet.

📁 Similar Datasheet

K3010 - 4PIN PHOTOTRANSISTOR (Cosmo)
K30101X - 4PIN PHOTOTRANSISTOR (Cosmo)
K30102X - 4PIN PHOTOTRANSISTOR (Cosmo)
K30103X - 4PIN PHOTOTRANSISTOR (Cosmo)
K30106X - 4PIN PHOTOTRANSISTOR (Cosmo)
K3010P - Optocoupler with Phototriac Output (Vishay Telefunken)
K3010PG - Optocoupler with Phototriac Output (Vishay Telefunken)
K3011 - Optocoupler with Phototriac Output (Vishay Telefunken)
K3011P - Optocoupler (Vishay Telefunken)
K3011PG - Optocoupler (Vishay Telefunken)

Other Datasheets by KODENSHI KOREA CORP

K302 - Photocoupler
K304 - Photocoupler

Full PDF Text Transcription

Click to expand full text

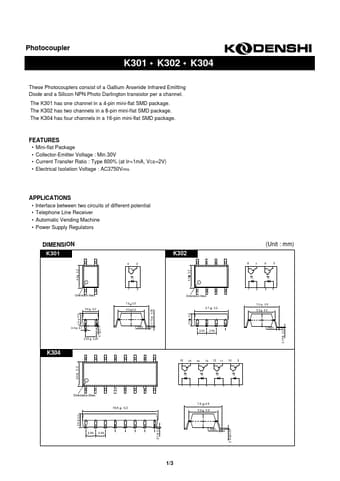

Photocoupler K301 • K302 • K304 These Photocouplers consist of a Gallium Arsenide Infrared Emitting Diode and a Silicon NPN Photo Darlington transistor per a channel. The K301 has one channel in a 4-pin mini-flat SMD package. The K302 has two channels in a 8-pin mini-flat SMD package. The K304 has four channels in a 16-pin mini-flat SMD package. FEATURES • Mini-flat Package • Collector-Emitter Voltage : Min.30V • Current Transfer Ratio : Type 600% (at IF=1mA, VCE=2V) • Electrical Isolation Voltage : AC3750Vrms APPLICATIONS • Interface between two circuits of different potential • Telephone Line Receiver • Automatic Vending Machine • Power Supply Regulators DIMENSION K301 4 0.2 (Unit : mm) K302 3 0.2 8 7 6 5 4.4 4.4 1 Orientation Mark 7.0 3.6 0.2 0.2 0.
