K302 - Photocoupler

K302 Description

Photocoupler K301 * K302 * K304 These Photocouplers consist of a Gallium Arsenide Infrared Emitting Diode and a Silicon NPN Photo Dar.

K302 Features

* Mini-flat Package
* Collector-Emitter Voltage : Min.30V
* Current Transfer Ratio : Type 600% (at IF=1mA, VCE=2V)

K302 Applications

* Interface between two circuits of different potential
* Telephone Line Receiver
* Automatic Vending Machine
* Power Supply Regulators DIMENSION K301 4 0.2 (Unit : mm) K302 3 0.2 8 7 6 5 4.4 4.4 1 Orientation Mark 7.0 3.6 0.2 0.2 0.5 2 Orientation Mark 1

📥 Download Datasheet

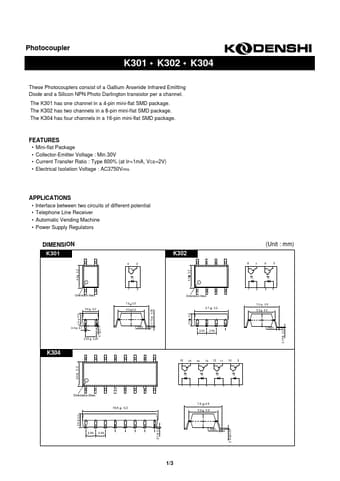

Preview of K302 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K302
Manufacturer
KODENSHI KOREA CORP
File Size
203.85 KB
Datasheet
K302_KodenshiCorp.pdf
Description
Photocoupler
