K3020PG - Optocoupler

Datasheet Summary

Description

The K3020P, K3020PG series consists of a phototriac optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package.

The non-zero crossing functionality enables full wave control.

Features

  • 400 V blocking voltage.
  • Wide range of trigger current.
  • 100 mARMS on-state current.
  • Wide temperature range -55 °C to +100 °C.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Datasheet preview – K3020PG

Datasheet Details

Part number K3020PG
Manufacturer Vishay Telefunken
File Size 144.96 KB
Description Optocoupler
Datasheet download datasheet K3020PG Datasheet
Additional preview pages of the K3020PG datasheet.

📁 Similar Datasheet

  • K302 - Photocoupler (KODENSHI KOREA CORP)
  • K3023 - 2SK3023 (Panasonic Semiconductor)
  • K3026 - 2SK3026 (Panasonic)
  • K300 - Silicon Zener Diodes (Aeroflex)
  • K300 - LOW LEVEL ZENER DIODES VERY LOW VOLTAGE/ LOW LEAKAGE (Knox Inc)
  • K3003 - 2SK3003 (Sanken)
  • K3004 - 2SK3004 (ETC)
  • K300zy - Thyristors (Littelfuse)
  • K301 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting) (KODENSHI KOREA CORP)
  • K3010 - 4PIN PHOTOTRANSISTOR (Cosmo)
Other Datasheets by Vishay Telefunken

Full PDF Text Transcription

Click to expand full text

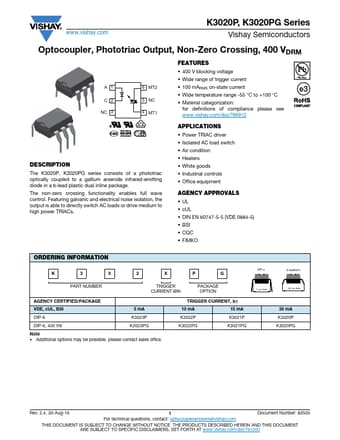

www.vishay.com K3020P, K3020PG Series Vishay Semiconductors Optocoupler, Phototriac Output, Non-Zero Crossing, 400 VDRM A1 C2 NC 3 6 MT2 5 NC 4 MT1 FEATURES • 400 V blocking voltage • Wide range of trigger current • 100 mARMS on-state current • Wide temperature range -55 °C to +100 °C • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 DESCRIPTION The K3020P, K3020PG series consists of a phototriac optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package. The non-zero crossing functionality enables full wave control. Featuring galvanic and electrical noise isolation, the output is able to directly switch AC loads or drive medium to high power TRIACs.
