K3026 - 2SK3026

Datasheet Summary

Features

q Avalanche energy capacity guaranteed q High-speed switching q Low ON-resistance q No secondary breakdown q Low-voltage drive q High electrostatic breakdown voltage s.

Panasonic

📥 Download Datasheet

Datasheet Details

Part number	K3026
Manufacturer	Panasonic
File Size	19.91 KB
Description	2SK3026
Datasheet	K3026 Datasheet

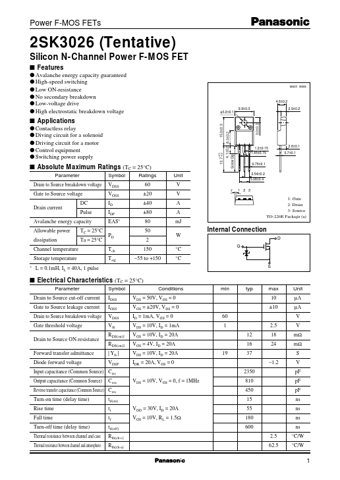

Additional preview pages of the K3026 datasheet.

📁 Similar Datasheet

K302 - Photocoupler (KODENSHI KOREA CORP)
K3020P - Optocoupler (Vishay Telefunken)
K3020PG - Optocoupler (Vishay Telefunken)
K3021P - Optocoupler (Vishay Telefunken)
K3021PG - Optocoupler (Vishay Telefunken)
K3022P - Optocoupler (Vishay Telefunken)
K3022PG - Optocoupler (Vishay Telefunken)
K3023 - 2SK3023 (Panasonic Semiconductor)
K3023P - Optocoupler (Vishay Telefunken)
K3023PG - Optocoupler (Vishay Telefunken)

Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text

Power F-MOS FETs 2SK3026 (Tentative) Silicon N-Channel Power F-MOS FET s Features q Avalanche energy capacity guaranteed q High-speed switching q Low ON-resistance q No secondary breakdown q Low-voltage drive q High electrostatic breakdown voltage s Applications q Contactless relay q Diving circuit for a solenoid q Driving circuit for a motor q Control equipment q Switching power supply s Absolute Maximum Ratings (TC = 25°C) Parameter Symbol Ratings Unit Drain to Source breakdown voltage VDSS 60 V Gate to Source voltage VGSS ±20 V Drain current DC Pulse ID IDP ±40 A ±80 A Avalanche energy capacity EAS* 80 mJ Allowable power dissipation TC = 25°C Ta = 25°C PD 50 W 2 Channel temperature Storage temperature Tch 150 °C Tstg −55 to +150 °C * L = 0.
