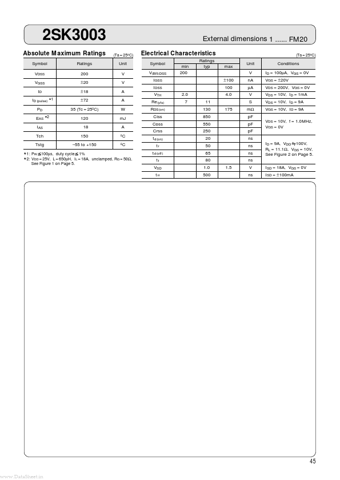

2SK3003
Absolute Maximum Ratings
Symbol VDSS VGSS ID ID (pulse) *1 PD EAS *2 I AS Tch Tstg Ratings 200 ± 20 ± 18 ± 72 35 (Tc = 25ºC) 120 18 150 –55 to +150
(Ta = 25ºC)
External dimensions 1 ...... FM20
Electrical Characteristics
Symbol V(BR) DSS I GSS I DSS VTH Re (yfs) RDS(on) Ciss Coss Crss t d(on) tr t d (off) tf VSD t rr 2.0 7 11 130 850 550 250 20 50 65 80 1.0 500 1.5 175 min 200 Ratings typ max ± 100 100 4.0 Unit V nA µA V S mΩ pF pF pF ns ns ns ns V ns I SD = 18A, VGS = 0V I SD = ± 100mA I D = 9A, VDD 100V, RL = 11.1Ω, VGS = 10V, See Figure 2 on Page 5. VDS = 10V, f = 1.
