K300zy

Thyristors

K300zy Features

* A C Circuit Oriented

* T riggering Voltage of 79V to 330V

* R oHS Compliant Electrical Specifications (TJ = 25°C, unless otherwise specified) Symbol Parameters VBO Breakover/Trigger Voltage VDRM Repetitive Peak Off-state Voltage Note: xxx = voltage, z = circui

K300zy General Description

The SIDAC is a silicon bilateral voltage triggered switch. Upon application of a voltage exceeding the SIDAC breakover voltage point, the SIDAC switches on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum.

K300zy Datasheet (702.06 KB)

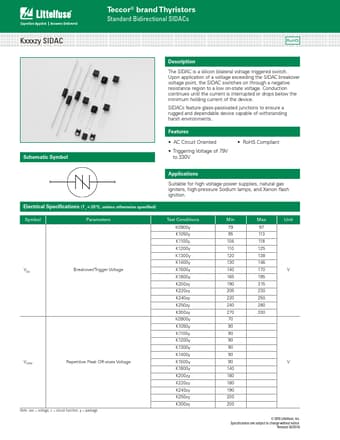

Preview of K300zy PDF

Datasheet Details

Part number:

K300zy

Manufacturer:

Littelfuse ↗

File Size:

702.06 KB

Description:

Thyristors.
