K3023P

Optocoupler

K3023P Features

* Approvals: D Rated recurring peak voltage (repetitive) VIORM = 600 VRMS D Creepage current resistance according to VDE 0303/IEC 112 Comparative Tracking Index: CTI = 275 D Thickness through insulation ≥ 0.75 mm General features: D BSI: BS EN 41003, BS EN 60095 (BS 415), BS EN 60950 (BS 7002), Cert

K3023P General Description

The K3020P(G) series consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package. The elements are mounted on one leadframe using a coplanar technique, providing a fixed distance between input and output for highest safety req.

K3023P Datasheet (146.78 KB)

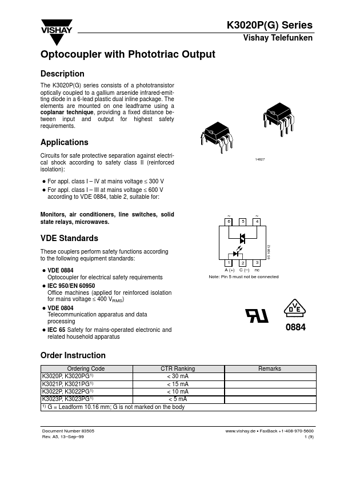

Preview of K3023P PDF

Datasheet Details

Part number:

K3023P

Manufacturer:

Vishay ↗ Telefunken

File Size:

146.78 KB

Description:

Optocoupler.
