K5620 - Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)

K5620 Description

Photocoupler K5620 * K5621 These Photocouplers cosist of a Gallium Arsenide Infrared Emitting Diode and a Silicon NPN PhotoDarlington transis.

K5620 Features

* Collector-Emitter Voltage : Min.35V
* Current Transfer Ratio : Typ.500% (at IF=1mA, VCE=2V)
* Electrical Isolation Voltage : AC5000Vrms

K5620 Applications

* Interface between two circuits of different potential
* Telephone Line Receiver
* Automatic Vending Machine
* Power Supply Regulators K5621 1 6 2 5 3 4 1 2 3 MAXIMUM RATINGS Parameter Forward Current Reverse Voltage Input Peak Forward Current Power Dissipatio

📥 Download Datasheet

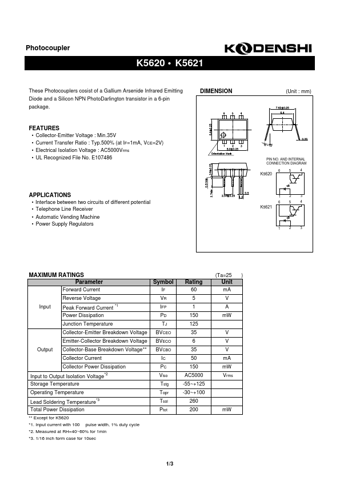

Preview of K5620 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K5620
Manufacturer
KODENSHI KOREA CORP
File Size
120.62 KB
Datasheet
K5620_KodenshiCorp.pdf
Description
Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)
