KIT-1001A - Photointerrupter

Description

The photointerrupter high-performance standard type KIT-1001A combines a high-output GaAs IRED with a high sensitivity phototransistor.

Features

PWB direct mount type.
GAP : 1.0mm.
Ultra - compact.

KODENSHI KOREA CORP

📥 Download Datasheet

Datasheet Details

Part number	KIT-1001A
Manufacturer	KODENSHI KOREA CORP
File Size	63.65 KB
Description	Photointerrupter
Datasheet	KIT-1001A Datasheet
Additional preview pages of the KIT-1001A datasheet.

📁 Similar Datasheet

KIT1002A - Mini Size Photo Interrupter (KODENSHI KOREA)
KIT3032S - Photo Interrupter (KODENSHI KOREA)
KIT5003A - photo interrupter (KODENSHI KOREA)
KIT8002A - Photo Interrupter (AUK)

Other Datasheets by KODENSHI KOREA CORP

Full PDF Text Transcription

Click to expand full text

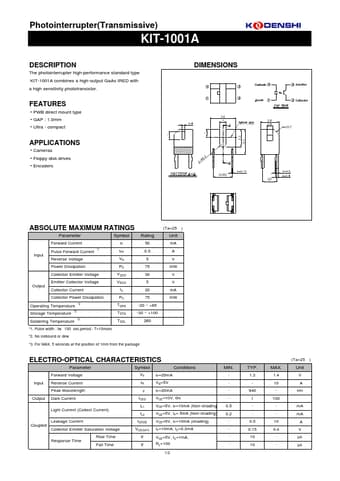

Photointerrupter(Transmissive) KIT-1001A DESCRIPTION The photointerrupter high-performance standard type KIT-1001A combines a high-output GaAs IRED with a high sensitivity phototransistor. DIMENSIONS FEATURES • PWB direct mount type • GAP : 1.0mm • Ultra - compact APPLICATIONS • Cameras • Floppy disk drives • Encoders ABSOLUTE MAXIMUM RATINGS Parameter Forward Current Input Pulse Forward Current Reverse Voltage Power Dissipation Collector Emitter Voltage Output Emitter Collector Voltage Collector Current Collector Power Dissipation Operating Temperature Storage Temperature *2 *3 *2 *1 (Ta=25¡É) Symbol IF IFP VR PD VCEO VECO IC PC TOPR TSTG TSOL Rating 50 0.5 5 75 30 5 20 75 -20 ~ +85 -30 ~ +100 260 Unit mA A V mW V V mA mW ¡É ¡É ¡É Soldering Temperature *1.

Published: Apr 4, 2005 |
