KK74ACT640 Octal 3-State Inverting Bus Transceiver High-Speed Silicon-Gate CMOS

TECHNICAL DATA www.DataSheet4U.com Octal 3-State Inverting Bus Transceiver High-Speed Silicon-Gate CMOS The KK74ACT640 is identical in pinout to the LS/ALS640, HC/HCT640. The KK74ACT640 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The KK74ACT640 is a 3-state transceiver that is used for 2-way asynchronous communication between data buses. The device has an active-low Output Enable pin, which is used to place the I/O ports into high-impedance s.

KK74ACT640_KODENSHIKOREA.pdf

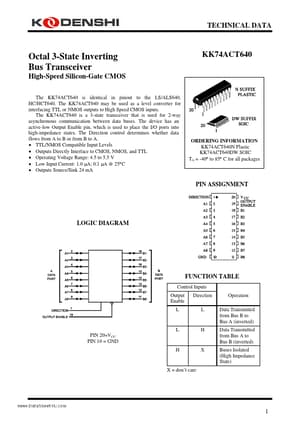

KK74ACT640 Datasheet Preview — Preview of KK74ACT640 PDF

Datasheet Details

Part number:

KK74ACT640

Manufacturer:

KODENSHI KOREA

File Size:

461.42 KB

Description:

Octal 3-state inverting bus transceiver high-speed silicon-gate cmos.
