KK74ACT643 Datasheet - KODENSHI KOREA

KK74ACT643 - Octal 3-State Bus Transceiver High-Speed Silicon-Gate CMOS

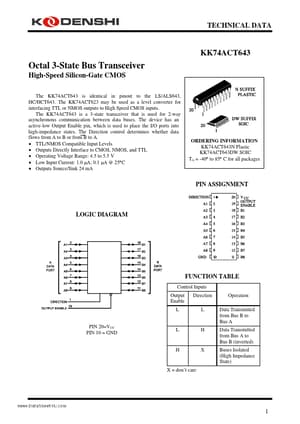

TECHNICAL DATA www.DataSheet4U.com KK74ACT643 Octal 3-State Bus Transceiver High-Speed Silicon-Gate CMOS The KK74ACT643 is identical in pinout to the LS/ALS643, HC/HCT643.

The KK74ACT623 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs.

The KK74ACT643 is a 3-state transceiver that is used for 2-way asynchronous communication between data buses.

The device has an active-low Output Enable pin, which is used to place the I/O ports into high-impedance

KK74ACT643_KODENSHIKOREA.pdf

Preview of KK74ACT643 PDF
KK74ACT643 Datasheet Preview Page 2 KK74ACT643 Datasheet Preview Page 3

Datasheet Details

Part number:

KK74ACT643

Manufacturer:

KODENSHI KOREA

File Size:

437.28 KB

Description:

Octal 3-state bus transceiver high-speed silicon-gate cmos.
