KK8028-xx SIMPLE MELODY GENERATOR

The KK8028 is a CMOS LSI chip which electronically plays a prearranged melody. Selection of melody start signal is possible by mask option: orders specification suffix "L" indicate Level Hold Mode, and suffix "S" indicate One Shot Mode. The Universal version (as One Shot or Level Hold Mode) is possi.

KK8028-xx Features

* 127-note ROM memory

* 1.3V to 3.3V power supply and low power consumption

* RC oscillator on chip

* One shot or level hold mode

* Sound range: 4 octaves, 2 series

* Tempo: 16 kinds (prestolargo)

* Direct piezo drive FUNCTIONS

* Soluti

KK8028-xx_KODENSHIKOREA.pdf

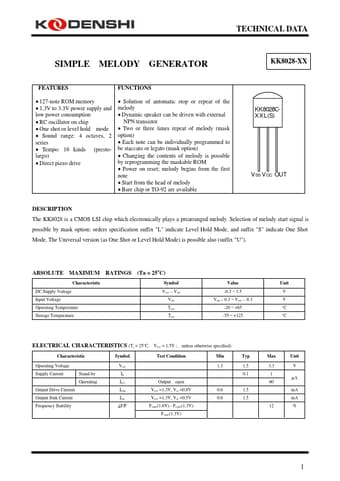

KK8028-xx Datasheet Preview — Preview of KK8028-xx PDF

Datasheet Details

Part number:

KK8028-xx

Manufacturer:

KODENSHI KOREA

File Size:

322.77 KB

Description:

Simple melody generator.
