KK8048

Melody Generator

KODENSHI KOREA

KK8048 Features

* Two Sound Sources with Envelope (CR Envelope)

* Melody is inserted up to two.

* According to customer’s request, the inserted melody is flexible.

* 3.0V to 5.0V Operating Voltage

* DC or AC Triggered Performance Start Mode (Mask Selected)

* Can Drive

KK8048 General Description

The KK8048 is a CMOS LSI chip, which plays a prearranged melodies. ORDERING INFORMATION KK8048N Plastic KK8048D SOIC TA = -40° to 85° C for all packages ABSOLUTE MAXIMUM RATINGS ( Ta = 25oC ) Characteristic Power Supply Voltage Input Terminal Voltage Operating Temperature Storage Temperature Solde.

KK8048 Datasheet (317.89 KB)

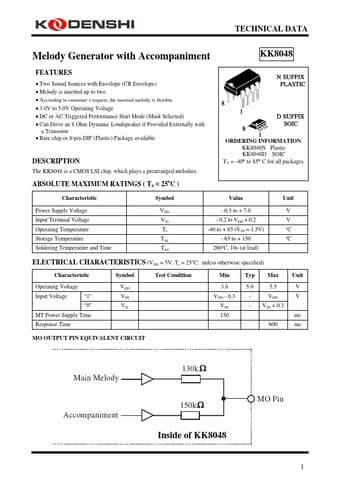

KK8048 Datasheet Preview — Preview of KK8048 PDF

Datasheet Details

Part number:

KK8048

Manufacturer:

KODENSHI KOREA

File Size:

317.89 KB

Description:

Melody generator.
