KMIP3-C325NS - Optical Monitoring Photodiode mini ceramic pkg

Description

KMIP3-C325NS is InGaAs PIN Photodiode with

250 um active area in Φ2.96mm ceramic pkage.

It is recommended for optical data communication and power monitoring.

Features

Front illuminated planar PIN-PD Low capacitance and low dark current Ceramic pkage with Φ2.96mm resine dome. High reliability and environmental endurance Wide operating wavelength range from 1.1mm to 1.6mm.

KODENSHI KOREA

📥 Download Datasheet

Datasheet Details

Part number	KMIP3-C325NS
Manufacturer	KODENSHI KOREA
File Size	147.94 KB
Description	Optical Monitoring Photodiode mini ceramic pkg
Datasheet	KMIP3-C325NS Datasheet

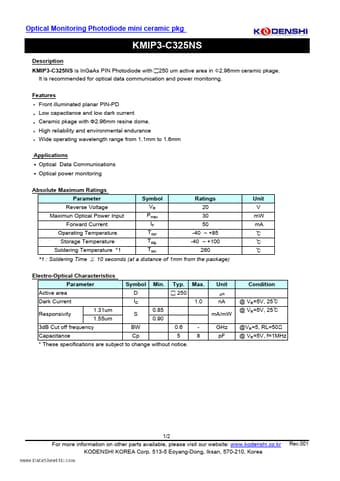

Additional preview pages of the KMIP3-C325NS datasheet.

📁 Similar Datasheet

KMI15-1 - Integrated rotational speed sensor (Philips)
KMI15-4 - Rotational speed sensor (Philips)
KMI17-4 - Rotational speed sensor (NXP)
KMI20-2 - Rotational speed sensor (Philips)

Other Datasheets by KODENSHI KOREA

KMIP3-C425NS - Optical Monitoring Photodiode mini ceramic pkg
KMIP2-B28DL - 2 Mini CAN InGaAs PIN PD
KMIP2-L225DL - Long Cap 2 Mini CAN InGaAs PIN PD

Full PDF Text Transcription

Click to expand full text

Optical Monitoring Photodiode mini ceramic pkg www.DataSheet4U.com KMIP3-C325NS Description KMIP3-C325NS is InGaAs PIN Photodiode with □250 um active area in Φ2.96mm ceramic pkage. It is recommended for optical data communication and power monitoring. Features Front illuminated planar PIN-PD Low capacitance and low dark current Ceramic pkage with Φ2.96mm resine dome. High reliability and environmental endurance Wide operating wavelength range from 1.1mm to 1.6mm Applications Optical Data Communications Optical power monitoring Absolute Maximum Ratings Parameter Reverse Voltage Maximun Optical Power Input Forward Current Operating Temperature Storage Temperature Soldering Temperature *1 Symbol VR Pmax IF Topr Tstg. Tsol.

Published: Apr 5, 2010 |
