S37701P Datasheet, Driver, KODENSHI KOREA

S37701P Features

• Driver ◈ Output Current (single output) 500mA(Max.) ◈ High sustaining voltage output ◈Output clamp diode ◈ Inputs compatible with various types of logic ◈ Package : SOP-20, DIP-18 ▲ Marking D

PDF File Details

Part number:

S37701P

Manufacturer:

KODENSHI KOREA

File Size:

401.34kb

Download:

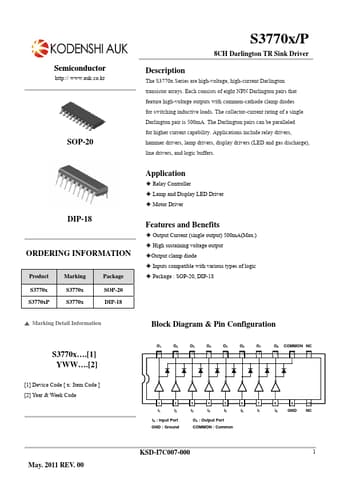

📄 Datasheet

Description:

8ch darlington tr sink driver. The S3770x Series are high-voltage, high-current Darlington transistor arrays. Each consists of eight NPN Darlington pairs that featu

S37701P Application

• Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. DIP-18
