S6419

Low Power Audio Amplifier

KODENSHI KOREA

S6419 Features

* ◈ Wide range of operating supply voltage (2~16V) for telephone line powered applications. ◈ Low quiescent supply current (typ.)2.0mA for battery powered applications. ◈ Added disable inpu

S6419 General Description

The S6419/P is a low power audio amplifier integrated circuit, intended for the communication applications, such as in speakerphones. It provides differential speaker outputs to maximize output swing at low supply voltages. Coupling capacitor to the speaker is not required. Open loop gain is around .

S6419 Datasheet (351.49 KB)

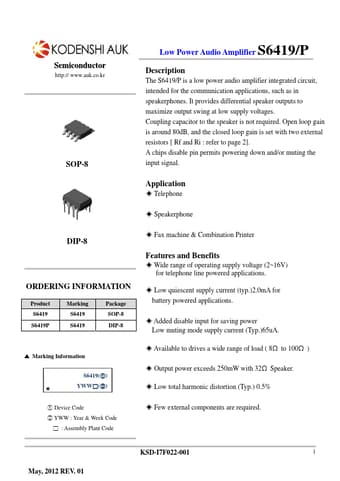

S6419 Datasheet Preview — Preview of S6419 PDF

Datasheet Details

Part number:

S6419

Manufacturer:

KODENSHI KOREA

File Size:

351.49 KB

Description:

Low power audio amplifier.
