KSM-602LM2E Datasheet - KODENSHI

Infrared receiver modules

KSM-602LM2E Features

* One mold small size package

* Wide supply-voltage range : 2.7V to 5.5V

* Shielded against electrical field disturbance

* High immunity against ambient light disturbances (Logic Controller Adaptation)

* Available for carrier frequencies between 32.7KHz to 56

KSM-602LM2E General Description

1) Transmitter(IRED) drive current : IFP = 300mAP-P ~ 600mAP-P 2) R-C Decoupling Filter with Lower Cut-off Frequency : R=100 *Ù , C=47 *Þ : 10k *Ù over ¢¡ fc = 1/2 *ð RC = 33.9Hz 3) External pull-up resistor(optional) Vcc C Rp micom GND 2/2 .

KSM-602LM2E Datasheet (204.91 KB)

Preview of KSM-602LM2E PDF

Datasheet Details

Part number:

KSM-602LM2E

Manufacturer:

KODENSHI

File Size:

204.91 KB

Description:

Infrared receiver modules.
www.DataSheet4U.com Infrared receiver modules KSM-60¡ à LM2E The KSM-60¡ à LM2E consist of a PIN Photodiode of high speed and a preamplifier IC in t.

📁 Related Datasheet

KSM-602LM Optic receiver modules (KODENSHI KOREA CORP)

KSM-602LF Optic receiver modules (KODENSHI KOREA CORP)

KSM-602LN Optic receiver modules (KODENSHI KOREA CORP)

KSM-602LO Optic receiver modules (KODENSHI KOREA CORP)

KSM-602LU Optic receiver modules (KODENSHI KOREA CORP)

KSM-602SM2 Optic receiver modules (KODENSHI KOREA CORP)

KSM-602SP Optic receiver modules (KODENSHI KOREA CORP)

KSM-602SR Optic receiver modules (KODENSHI KOREA CORP)

KSM-602TE2 Optic receiver modules (KODENSHI KOREA CORP)

KSM-602TH2 Optic receiver modules (KODENSHI KOREA CORP)

TAGS

KSM-602LM2E Infrared receiver modules KODENSHI

Image Gallery

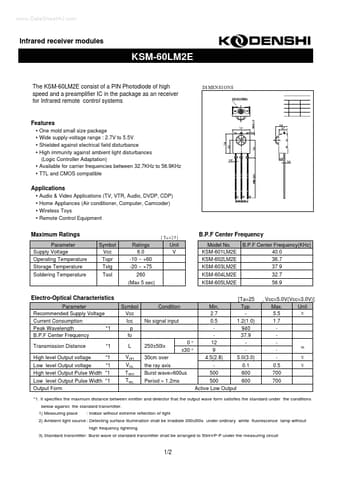

KSM-602LM2E Datasheet Preview Page 2
