KSM-605LM2E, KSM-601LM2E, Infrared receiver modules

www.DataSheet4U.com Infrared receiver modules KSM-60¡ à LM2E The KSM-60¡ à LM2E consist of a PIN Photodiode of high speed and a preamplifier IC in t.
1) Transmitter(IRED) drive current : IFP = 300mAP-P ~ 600mAP-P 2) R-C Decoupling Filter with Lower Cut-off Frequency : R=100. Ù , C=47. Þ : 10k.

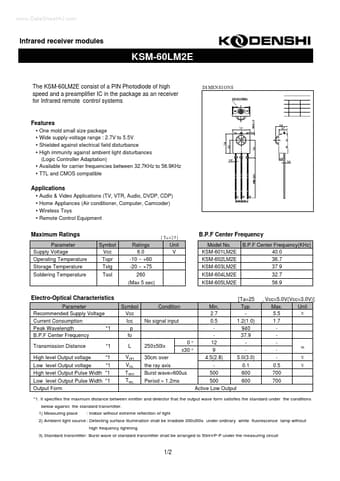

datasheet Preview Page 1 from Datasheet4u.com

KSM-601LM2E_KODENSHI.pdf

KSM-605LM2E Datasheet Preview — This datasheet PDF includes multiple part numbers: KSM-605LM2E, KSM-601LM2E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KSM-605LM2E, KSM-601LM2E

Manufacturer:

KODENSHI

File Size:

199.88 KB

Description:

Infrared receiver modules

Note:

This datasheet PDF includes multiple part numbers: KSM-605LM2E, KSM-601LM2E.
Please refer to the document for exact specifications by model.

Features

* One mold small size package
* Wide supply-voltage range : 2.7V to 5.5V
* Shielded against electrical field disturbance
* High immunity against ambient light disturbances (Logic Controller Adaptation)
* Available for carrier frequencies between 32.7KHz to 56

Applications

* Audio & Video Applications (TV, VTR, Audio, DVDP, CDP)
* Home Appliances (Air conditioner, Computer, Camcoder)
* Wireless Toys
* Remote Control Equipment Maximum Ratings Parameter Supply Voltage Operating Temperature Storage Temperature Soldering Temperature Symbol
