SDB10200PH HIGH VOLTAGE SCHOTTKY RECTIFIER

The SDB10200PH is ideally suited for a full wave output rectifier in low switching power supplies, inverters and as free wheeling diodes. Ordering Information Device SDB10200PH Marking Code SDB10200 Package TO-220F-2L Packaging Tube Marking Information AUK = Manufacture Logo ∆ = Control Code o.

SDB10200PH Features

* Low forward voltage drop

* Low power loss and High efficiency

* Low leakage current

* High surge capability

* Full lead (Pb)-free and RoHS compliant device Pin Configuration Pin 1: Cathode Pin 2: Anode Applications

* High efficiency SMPS

* Output rectification

* H

SDB10200PH-KODENSHI.pdf

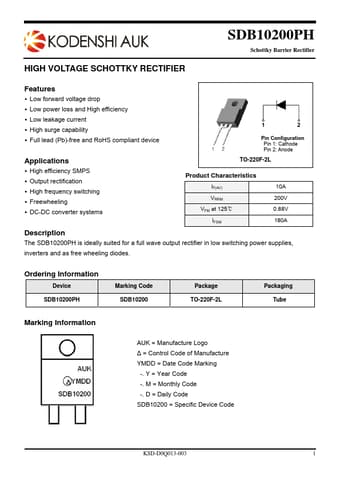

SDB10200PH Datasheet Preview — Preview of SDB10200PH PDF

Datasheet Details

Part number:

SDB10200PH

Manufacturer:

KODENSHI

File Size:

278.73 KB

Description:

High voltage schottky rectifier.
