SDB10200PR Datasheet - KODENSHI

SDB10200PR DUAL COMMON ANODE SCHOTTKY RECTIFIER

The SDB10200PR has two schottky barriers arranged in a common anode configuration. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. Ordering Information Device SDB10200PR Marking Code B10200PR Package TO-220F-3L Packaging T.

SDB10200PR Features

* Low forward voltage drop and leakage current

* Low power loss and High efficiency

* High surge capability

* Dual common anode rectifier

* Full lead (Pb)-free and RoHS compliant device 123 Pin 1, 3 : Cathode Pin 2: Anode Applications

* Power supply - Output rectification

SDB10200PR Datasheet (307.34 KB)

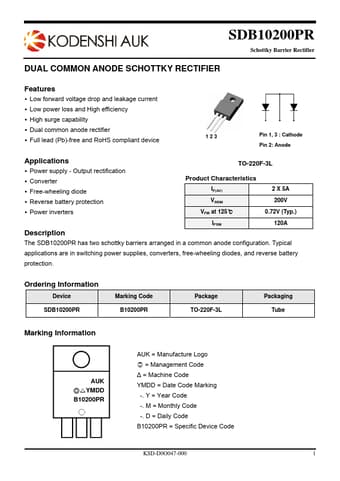

Preview of SDB10200PR PDF
SDB10200PR Datasheet Preview Page 2 SDB10200PR Datasheet Preview Page 3

Datasheet Details

Part number:

SDB10200PR

Manufacturer:

KODENSHI

File Size:

307.34 KB

Description:

Dual common anode schottky rectifier.
