SG233V1S-S PHOTOINTERRUPTERS

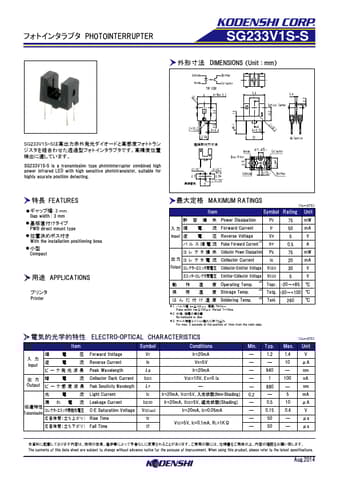

PHOTOINTERRUPTER SG233V1S-S DIMENSIONS （Unit : mm） Cathode Emitter Anode Collector TOP VIEW 4 4×Max.0.2 6.4 3 0.4 A Optical Center 0.8 5.4 4±0.3 1.5 (4.2) 0.5 2×C0.3 C0.7 SG233V1S-S 。。 SG233V1S-S is a transmission type photointerrupter combined high power infrared LED with high sensitive phototransistor, suitable for highly acurate position detecting. 2×C0.2 4×0.4 (2.54) A 4×0.15 (5) AA Section Anode Boss Pitch φ1.4 +0 -0.1 Collector (2.5) 3.2±0.1 φ1.1+-00.1 2.5 5 .

SG233V1S-S Features

* : 3 mm Gap width : 3 mm

* PWB direct mount type

* With the installation positioning boss

* Compact APPLICATIONS Printer MAXIMUM RATINGS （Ta＝25℃） Item Symbol Rating Unit Power Dissipation Forward Current Input Reverse Voltage Pulse Forward Current

* 1 PD
