SG232D Datasheet - NEC

SG232D - Green GaP LED

The SG2320 is a full resin-molded LEO lamp with a flat rectangular face which uniformly emits brilliant green light.

It is especially suitable for electronic equipment in audio applications which require fancy displays.

Package Dimensions SG232D: Green Diffused Plastic lens.

4 ± 0.2 (0.158) bQd

SG232D Features

* o Flat rectangular face o Low cost o Long lead o Bright green o Compatible with integrated circuits o Red (SR6320) and amber (SY4320) LEOs are available in the same package style Applications o Visual displays o Peak level indicators o Radio and stereo equipment indicators o Measuring instruments, t

SG232D-NEC.pdf

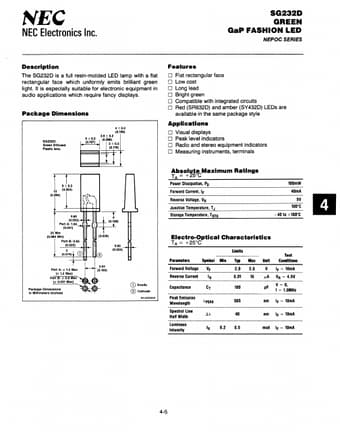

Preview of SG232D PDF
SG232D Datasheet Preview Page 2

Datasheet Details

Part number:

SG232D

Manufacturer:

NEC

File Size:

104.88 KB

Description:

Green gap led.
