SG282 PHOTOINTERRUPTERS

SG282 Description

PHOTOINTERRUPTER SG282 DIMENSIONS （Unit : mm） 1 Anode Emitter 1 SG282 。 。 SG282 is a transmission type photointerrupter combined high power infr.

SG282 Features

* 　5.4mm Gap width : 5.4mm
* PWB direct mount type

SG282 Applications

* 、、ATM、 Copier, Printer, ATM, Ticket vending machine MAXIMUM RATINGS （Ta＝25℃） Item Symbol Rating Unit Power Dissipation Forward Current Input Reverse Voltage Pulse Forward Current
* 1 PD IF VR IFP 75 mW 50 mA 5V 1A Collector Power Dissipation Pc 75 mW Coll

📥 Download Datasheet

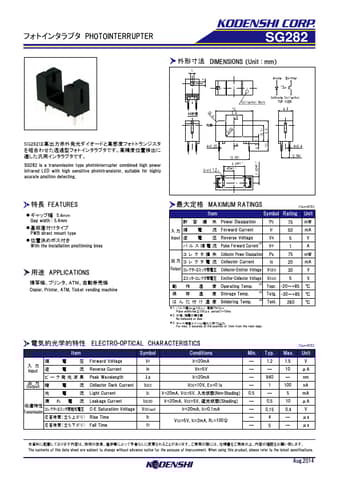

Preview of SG282 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SG282
Manufacturer
KODENSHI
File Size
145.85 KB
Datasheet
SG282-KODENSHI.pdf
Description
PHOTOINTERRUPTERS
