SG285 Datasheet - KODENSHI

SG285 - PHOTOINTERRUPTERS

PHOTOINTERRUPTER SG285 DIMENSIONS (Unit : mm) SG285 。 。 SG285 is a transmission type photointerrupter combined high power infrared LED with high sensitive phototransistor, suitable for highly acurate position detecting.

Different connectors are prepared as shown below.

contains a serial number according to the adopted connector.

No.

Model No.

1 Tyco electronics 292130-3 2 JST S3B-PH-K(LF)(SN) 3 Hirose DF3A-3P-2DS(01) 5 Kyocera elco 00-8283-0311-000-000+

SG285 Features

* :13mm Gap width : 13mm

* Connector type

* :1.0mm、1.2mm、1.6mm Snap-in mount 3 kinds of mounting plate thicknesses : 1.0mm, 1.2mm, 1.6mm

* The visible light cutting filter for light noise shield is attachable APPLICATIONS 、、ATM、 Copier, Printer, ATM, Bending machine MAXIMUM RAT

SG285-KODENSHI.pdf

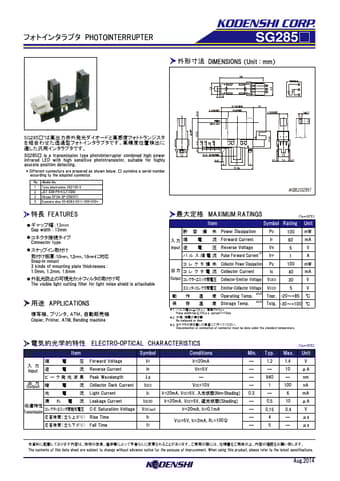

Preview of SG285 PDF
