SN7500

Pulse Width Modulation

SN7500 Features

* ◈ Package Type

* Internal Regulator Provides a Stable 5V Reference Supply Trimmed to ±1% or ±2% Accuracy

* Uncommitted output transistors capable of 200mA source or sink

* Internal protection from double pulsing of out-puts with narrow pulse widths or with supply voltages below specifi

SN7500 General Description

The SN7500 is a monolithic integrated circuit which includes all the necessary building blocks for the design of pulse width modulate(PWM) switching power supplies, including push-pull, bridge and series configuration. The precision of voltage reference is improved up to ±1%/±2% through trimming and.

SN7500 Datasheet (463.21 KB)

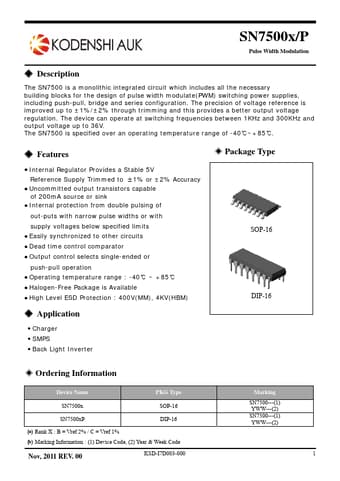

Preview of SN7500 PDF

Datasheet Details

Part number:

SN7500

Manufacturer:

KODENSHI

File Size:

463.21 KB

Description:

Pulse width modulation.
