CDR05xxxxxx Ceramic Chip

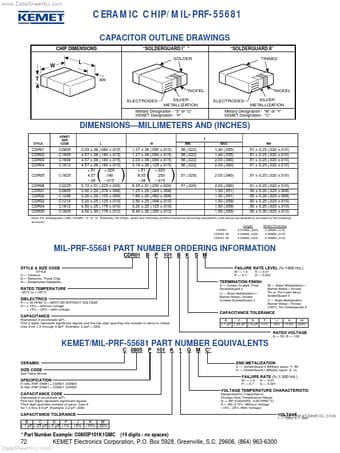

www.DataSheet4U.com CERAMIC CHIP/MIL-PRF-55681 CAPACITOR OUTLINE DRAWINGS CHIP DIMENSIONS “SOLDERGUARD I” SOLDER “SOLDERGUARD II” TINNED W T L BW NICKEL ELECTRODES SILVER METALLIZATION ELECTRODES NICKEL SILVER METALLIZATION Military Designation - “S” or “U” KEMET Designation - “H” Military Designation - “W” or “Y” KEMET Designation - “C” DIMENSIONS MILLIMETERS AND (INCHES) STYLE KEMET SIZE CODE T L W MIN. MAX. BW CDR01 CDR02 CDR03 CDR04 CDR05 CDR06 CDR31 CDR32 CDR33 CDR34.

CDR05xxxxxx Features

* (4)C CDR06BP682B(3)W(4) 8,200 J,K C2225P822(3)1G(4)C CDR06BP822B(3)W(4) 10,000 J,K C2225P103(3)1G(4)C CDR06BP103B(3)W(4) 50 Volt

* C2225 SIZE (MILITARY CDR06) 390,000 K C2225P394K5X(4)C CDR06BX394AKW(4) 470,000 K,M C2225P47
