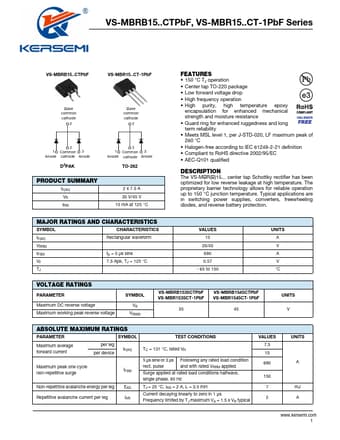

VS-MBRB1545CTPbF, VS-MBRB1535CTPbF, Schottky Rectifier

VS-MBRB15..CTPbF, VS-MBR15..CT-1PbF Series VS-MBRB15..CTPbF VS-MBR15..CT-1PbF .
The VS-MBR(B)15 center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

VS-MBRB1535CTPbF-Kersemi.pdf

VS-MBRB1545CTPbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBRB1545CTPbF, VS-MBRB1535CTPbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-MBRB1545CTPbF, VS-MBRB1535CTPbF

Manufacturer:

Kersemi

File Size:

1.91 MB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-MBRB1545CTPbF, VS-MBRB1535CTPbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation Center tap TO-220 package Low forward voltage drop High frequency operation High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Guard ring for enhanced ruggedness and long ter

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. PRODUCT SUMMARY IF(AV) VR IRM 2 x 7.5 A 35 V/45 V 15 mA at 125 °C MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 μs sine 7.5 Apk, TJ = 125 °C CHARACTERISTICS Rectangular wavefo
