VS-MBRB1035PbF

Schottky Rectifier

VS-MBRB1035PbF Features

* 150 °C TJ operation

* TO-220 and D2PAK packages

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness an

VS-MBRB1035PbF General Description

This Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery prote.

VS-MBRB1035PbF Datasheet (141.28 KB)

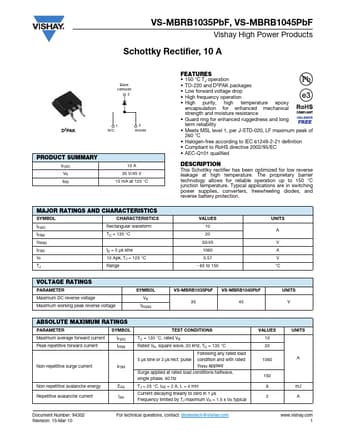

Preview of VS-MBRB1035PbF PDF

Datasheet Details

Part number:

VS-MBRB1035PbF

Manufacturer:

Vishay ↗

File Size:

141.28 KB

Description:

Schottky rectifier.
VS-MBRB1035PbF, VS-MBRB1045PbF Vishay High Power Products Schottky Rectifier, 10 A Base cathode 2 D2PAK 1 N/C 3 Anode PRODUCT SUMMARY IF(AV) VR I.
