2SA1575

The 2SA1575 is Transistor designed by Kexin.

Product Overview

Kexin

Part number	2SA1575
Manufacturer	Kexin
File Size	71.07 KB
Description	Transistor
Datasheet	2SA1575_Kexin.pdf

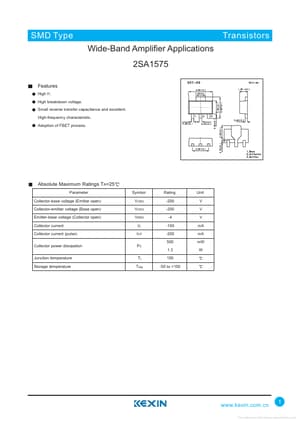

Additional preview pages of the 2SA1575 datasheet.

High fT. . High breakdown voltage. Small reverse transfer capacitance and excellent. High-frequency characteristic. Adoption of FBET process. Absolute Maximum Ratings TA=25 Parameter Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Collector current Collector current (pulse) Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC 1.3 Tj Tstg 150 -55 to +150 W Rating -200 -200 -4 -100 -20.
