2SK1284-Z - N-Channel MOSFET

Kexin

📥 Download Datasheet

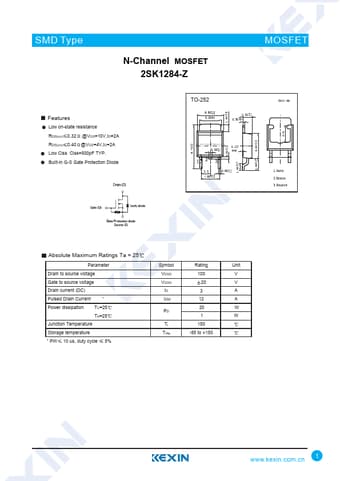

2SK1284-Z Datasheet Preview — Preview of 2SK1284-Z PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK1284-Z
Manufacturer	Kexin
File Size	1.53 MB
Description	N-Channel MOSFET
Datasheet	2SK1284-Z-Kexin.pdf

2SK1284-Z Product details

Features

Low on-state resistance RDS(on) 0.32 . @VGS=10V,ID=2A RDS(on) 0.40 @VGS=4V,ID=2A Low Ciss Ciss=500pF TYP. Built-in G-S Gate Protection Diode +9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm +1.50 0.15 -0.15 3.80 +5.55 0.15 -0.15 + 0.150 .5 0 -0.15 + 0.281 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.252 .6 5 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gat.
