2SK1581 - N-Channel MOSFET

Datasheet Summary

Features

  • s.
  • VDS (V) = 16V.
  • ID = 0.2 A.
  • RDS(ON) ＜ 5Ω (VGS = 2.5V).
  • RDS(ON) ＜ 3Ω (VGS = 4V) +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.10.97 -0.1 1. Gate 2. Source 3. Drain 0-0.1 +0.10.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Ta = 25℃ Junction Temperat.

📥 Download Datasheet

Datasheet preview – 2SK1581

Datasheet Details

Part number 2SK1581
Manufacturer Kexin
File Size 876.65 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK1581 Datasheet
Additional preview pages of the 2SK1581 datasheet.

📁 Similar Datasheet

Other Datasheets by Kexin

Full PDF Text Transcription

Click to expand full text

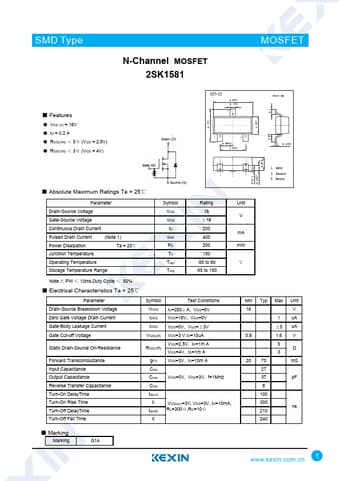

SMD Type MOSFET N-Channel MOSFET 2SK1581 ■ Features ● VDS (V) = 16V ● ID = 0.2 A ● RDS(ON) ＜ 5Ω (VGS = 2.5V) ● RDS(ON) ＜ 3Ω (VGS = 4V) +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.10.97 -0.1 1. Gate 2. Source 3. Drain 0-0.1 +0.10.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Ta = 25℃ Junction Temperature Operating Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD TJ Topt Tstg Rating 16 ±16 200 400 200 150 -55 to 80 -55 to 150 Unit V mA mW ℃ Note.
