2SK1582 - N-CHANNEL MOS FET

Datasheet Summary

Description

The 2SK1582, N-channel vertical type MOS FET, is a switching device which can be driven directly by the output of ICs having a 5 V power source.

The 2SK1582 has excellent switching characteristics and is suitable for use as a high-speed switching device in digital circuits.

Features

  • Directly driven by ICs having a 5 V power source.
  • Not necessary to consider driving current because of its high input impedance.
  • Possible to reduce the number of parts by omitting the bias resistor.

📥 Download Datasheet

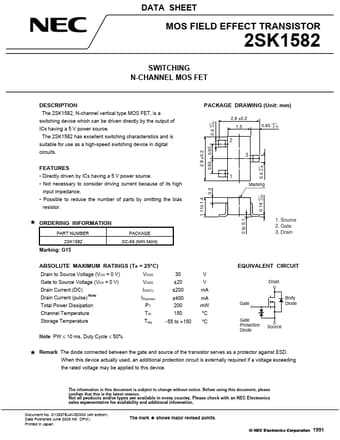

Datasheet preview – 2SK1582
