2SK1581C - N-Channel MOSFET

Datasheet Summary

Description

The 2SK1581C, N-channel vertical type MOSFET designed for general-purpose switch, is a device which can be driven directly by a 2.5 V power source.

Features

  • Directly driven by a 2.5 V power source.
  • Low on-state resistance RDS(on)1 = 0.57  MAX. (VGS = 4.5 V, ID = 0.3 A) RDS(on)2 = 0.60  MAX. (VGS = 4.0 V, ID = 0.3 A) RDS(on)3 = 0.88  MAX. (VGS = 2.5 V, ID = 0.15 A) Ordering Information Part Number Lead Plating Packing Package 2SK1581C-T1B-A/AT -A:Sn-Bi , -AT:Pure Sn 3000p/Reel SC-59 (3pMM) Remark "-A/AT" indicates Pb-free. This product does not contain Pb in external electrode and other parts. Marking XL Absolute Maximum Ra.

📥 Download Datasheet

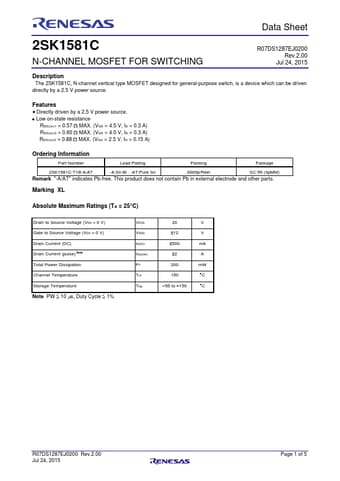

Datasheet preview – 2SK1581C
